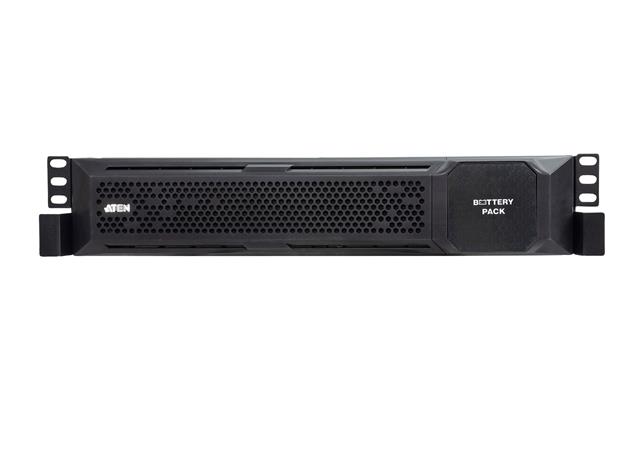

ATEN UPS Battery Box extends battery runtime when used with ATEN UPS systems. Users will have an extra time to save valuable data from any unexpected power shutdowns.

Package Contents
1x Battery Pack
1x Rack Mounting Kit
1x Rail Slide Kit
1x Battery cable
1x Tower Extend Stand
1x User Instructions

Electrical
Nominal Input Voltage
36V
Nominal Output Voltage
36V
Maximum Output Current (Total)
50A Max
Battery
Battery Type
Sealed Lead-Acid
Battery Size
12V/9Ah
Battery Quantity
6
Physical Properties
Rack Unit
2U
Dimensions (L x W x H)
8.80 x 43.80 x 38.00 cm
(3.46 x 17.24 x 14.96 in.)
Weight
21.50 kg ( 47.36 lb )
Environmental
Temperature (Operating / Storage)
0 – 40 °C/-15 – 45 °C
Humidity (Operating & Storage)
0 – 90% (non-condensing)
Elevation (Operating / Storage)
10,000 ft (3,000 m)/50,000 ft (15,000 m)
Certifications
Certifications
cTUVus
Approvals
RoHS Compliant
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
