All Specifications
Display
Projection System     DLP Single 0.55" SVGA
Resolution     800 x 600 pixels
Resolution Support     VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Brightness (ANSI lumens)     4000 ANSI Lumens
Contrast Ratio (FOFO)     20000:1
Display Color     30 Bits (1,07 billion colors)
Native Aspect Ratio     Native 4:3 (5 aspect ratio selectable)
Light Source     Lamp
Light Source life*
    Normal 6000 hr
    Economic 10000 hr
    SmartEco 10000 hr
    LampSave 15000hr

Optical
Throw Ratio     1.96÷2.15
Zoom Ratio     1.1X
Lens shift     NA
Projection Offset**     110%
Projection Size     60"~150"
Keystone Correction     Auto ID, Vertical +/- 40 degrees
Horizontal Frequency     15K~102KHz

Audio
Speaker     10W x 1

Special Feature
Security     Security Bar, Kensington lock
Feature     1D Auto Keystone, High Brightness, Spreadsheet mode, Bright Mode, Presentation Mode, Infographic Mode, Video Mode, Srgb Mode

Compatibility
Resolution Support     VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Horizontal Frequency     15K~102KHz
Vertical Scan Rate     23 ~ 120 Hz
HDTV Compatibility     480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility     NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p), HDTV (720p, 1080i/p 60Hz)

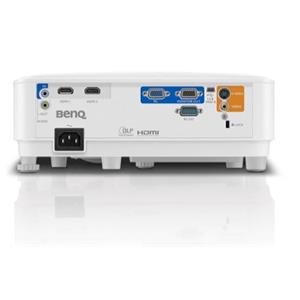

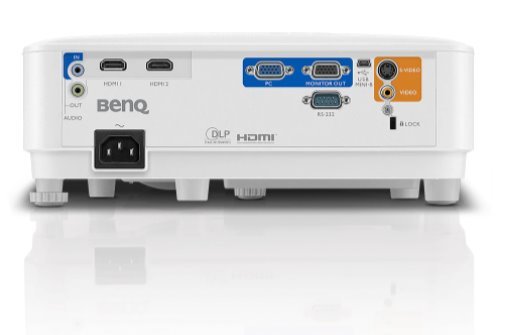

Connectivity
HDMI
    HDMI-1 x1
    HDMI-2 x1
PC (D-sub 15pin)     x1
Monitor out (D-sub 15pin,Female)     1
Audio in (mini jack)     1
Audio out (mini jack)     1
RS232 In (D-sub 9pin, male)     1
USB TypeA-1     x1(1.5A power)
USB Type mini B     x1
IR Receiver (Front+Top)     2
S-Video     x1
Composite Video (RCA)     x1

Dimension and Weight
Dimensions (W x H x D)(mm)     296 x 120 x 221 mm
Net Weight (Kg/ lbs )     2.3kg +/- 200g

Power
Power Consumption(Max/Normal/Eco)     Max 280W, Normal 260W, Eco 215W
Standby Power Consumption     Normal < 0.5Watts.
Power Supply     100 ~ 240V AC

Operation Condition
Noise Level(Normal/Eco)     34 /29 dBA
Operating Temperature     0~40 °C

Accessories (Standard)
Remote Control w/ Battery     x 1 (5J.JND06.001)
Power Cord (by region)     x 1 (1.8m)
Quick Start Guide     x 1 (4J.JND01.001)
Warranty Card (by region)     x 1
VGA(D-sub 15pin) Cable     x 1 (1.5m)
AAA Battery     x2

Accessories (Optional)
Spare Lamp Kit     x 1 (5J.JND05.001)
Universal Ceiling Mount     1
3D Glasses     x 1 (5J.J9H25.002)
QCast Mirror dongle     x 1 (5A.JH328.10X)

OSD
OSD Language     Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages)
