The VK0200 is a fully-customizable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0200 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfill most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the local network, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad, you have instant and smart control of the facilities from a Control Pad that can manage any device in the room.

Note: This model is also available in black color – Part number: VK02001, which is a built-to-order product. To place an order, please contact your regional ATEN representative.

Features:


VK0200 Control Pad

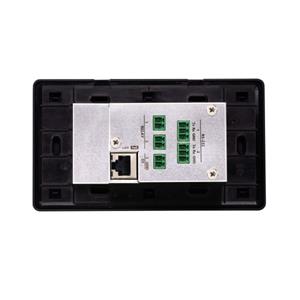

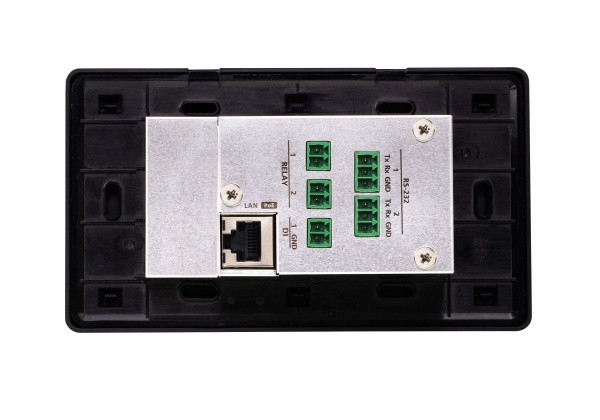

Supports various interface connections:
•  2 x RS-232 ports
•  2 x Relay channels
•  1 x Dgital input channel
•  1 x Ethernet port
Designed to mount in 2-gang EU-type and MK-type junction boxes

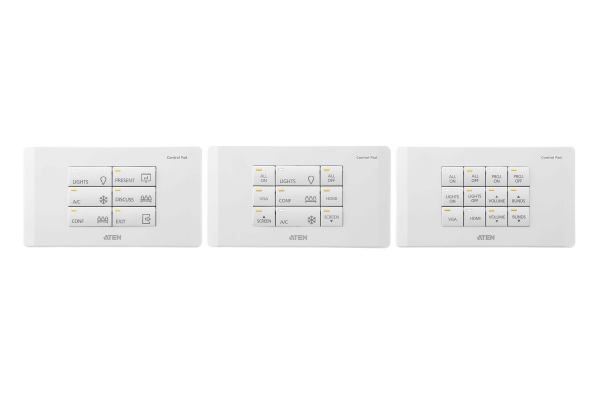

Fully customizable with 125 layout combinations of 6 to 12 buttons

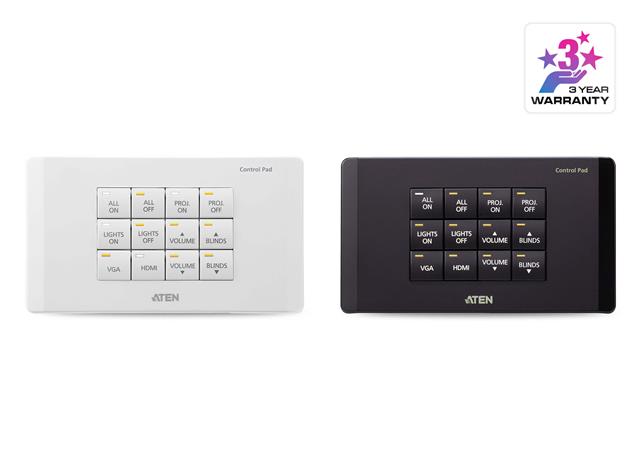

Available in black or white color
Supports native KNX IP for building management systems
Telnet, TCP, UDP, HTTP, HTTPS, ONVIF, and PJLink compliant
Supports project file backup1
Web GUI for easy system configuration
Supports SSH communication for data monitoring2
LED indication of connection and hardware status
Dual-color LEDs for clear indication in dark environments

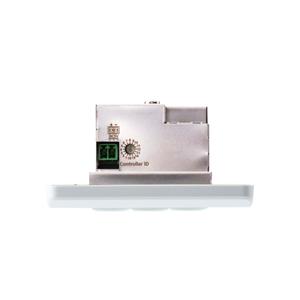

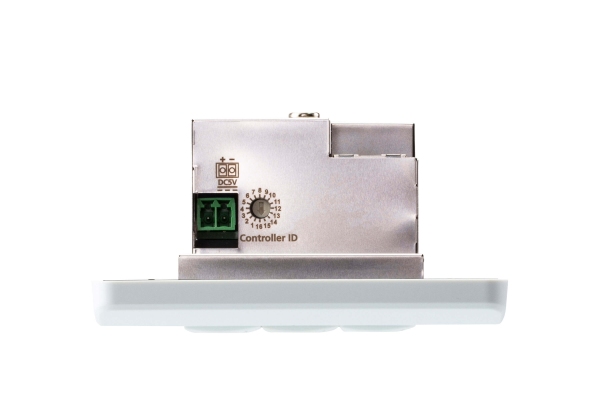

Redundant power supplies – Power over Ethernet and DC 5V (optional)
Customized button engraving service



VK6000 Configurator Software
Simple profile setup with easy configuration steps via intuitive GUI
Customizable GUI to be used on mobile devices and PC3
Supports ControlAssist that allows PC control4
Built-in Database Generator for device driver setup and overall device management
Built-in ATEN Library comprising 10,000+ device drivers and complete ATEN VanCryst product drivers
Two-way communication enables user-defined event monitoring to automatically trigger the next actions
Test tool to verify commands in action before uploading the profile to the VK0200 Control Pad

Note:
1. Each ATEN Control Box is capable of backing up one project file.
2. The SSH protocol can be used for monitoring the receiving/transmission data of the Control Pad.
3. Additional license is required for mobile control.
4. For details on the supported PC control actions, refer to the ATEN Control System User Manual.



Package Contents
1x VK0200 12-button Control Pad
1x Button Pack
6x Terminal Blocks
1x Faceplate
1x User Instructions
