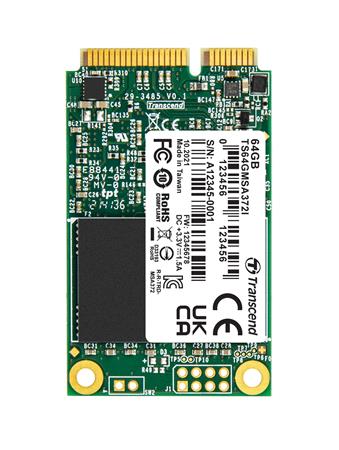

TRANSCEND MSA372I 64GB Industrial SSD disk mSATA, SATA III (MLC), 550MB/s R, 450MB/s W

Supporting the Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s MSA372I mSATA SSD delivers blazing-fast performance, and long-term reliability. The compact mSATA form factor is just one-eighth the size of a standard 2.5" SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers. Transcend offers MSA372I with wide temperature (-40°C ~ 85°C) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies:
- 30µ” PCB Gold Finger
- Corner Bond
- Wide Temperature
- Thermal Sensor
- Hardware Purge
- Anti-sulfur Technology
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Power Shield (PS)

Firmware Features:
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Security Command
- Hardware Purge (optional):
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode

Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with JEDEC MO-300A
- DDR3 DRAM Cache embedded
-MLC NAND flash
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

Specifications:
Dimensions: 50.8 mm x 29.85 mm x 4.85 mm
Weight: 8 g (0.28 oz)
Pin Count: 52 pin
Form Factor: mSATA (MO-300A)
Bus Interface: SATA III 6Gb/s
Capacity: 64 GB
Flash Type: MLC NAND flash
Operating Voltage: 3.3V±5%
Operating Temperature:
Wide Temp. -40°C ~ 85°C
Storage Temperature: -55°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)
Power Consumption (Operation): 2.64 watt(s)
Power Consumption (Sleep): 0.4 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 550 MB/s
- Write: up to 450 MB/s
4K Random Read/Write (IOmeter): Read: up to 70,000 IOPS
Write: up to 70,000 IOPS
Mean Time Between Failures (MTBF): 2,500,000 hour(s)
Terabytes Written (TBW): up to 2360 TBW
Drive Writes Per Day (DWPD): 2.6 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
