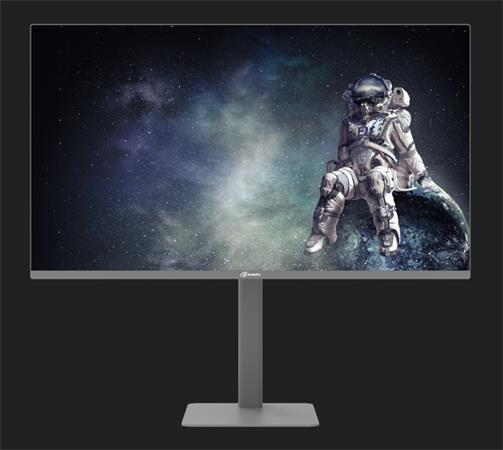

Model DHI LM27 GO30A
LCD Technology OLED
Backlight QD OLED
Screen Size 27 inch
Aspect Ratio 16:9
Viewing Size 590.42(H) x 333.72(V)mm
Screen to Body Rat io .
Viewing Angle 178�‹ (H)/178�‹ (V)
Display Mode Horizontal
Pixel Pitch 0.2 292 mm �~ 0.2 292 mm
Pixels Per Inch 110
Resolution 2560 (H) �~ 1440 (V)
Refresh Rate 2 4 0 Hz
Display Color 1.07B (10bit)
Color Gamut 9 9 % DCI P3 ;100% sRGB
Color Accuracy �˘E 1
Brightness SDR : 200 nits HDR : 400 nits ( APL 10 % ) Contrast Ratio 1500000 : 1 Response Time 0.03ms Lifespan 30,000 hrs
Operation Hours 7 × 16 H
Surface Treatment Hard coating (2H)
Flicker free Technology Yes
Low Blue Light Software blue light protection
Function
HDR HDR 400
Device Ports
Input Port
2 × HDMI 2.1 (2560 × 1440@ 2 4 0 Hz 1 0bit ), 1 × DP 1.4
(2560 ×1440@2 4 0 Hz 8bit
Output Port 1 × Audio out
Power & Environmental Conditions
Power Supply 24 VDC, 2.7 A
Power Type power adapter
Power Consumption 21 W (basic), 26 W (typ.), 65 W (max)
Standby Power
Consumption
<0.5 W
Operatin g Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 10% 85% (RH)
Storage Temperature 20 °C to +60 °C ( 4 °F to +140 °F)
Storage Humidity 5% 90% (RH)
Inclined Angle - 7 ° ± 2° / 20 ° ± 2 ° Left and Right Rotation
Angle
3 0° / 3 0°
Vertical Rotation Angle 90
Height Adjustment 130 ± 5mm Product Dimensions
609.5 ( W ) x 352.8 ( H ) x 52.8 ( D ) without wall mount bracket
Package Size
767 ( W ) x 174 ( D ) x 462( H ) (W × D × H
Frame Width U/L/R/D: 1.3 mm/ 1.3 mm/ 1.3 mm 11.8 mm
Net Weight 6 .6 kg
Gross Weight 9 .2 kg
Casing Color Star Gray
Control Mode Joystick
Status Indicator Light Yes
Wall Mount VESA 75 mm × 75 mm
Accessory
Power Adapter, Bracket, Base, DP Cable, User Manual
(QR Code), Legal and Regulatory Infor mation, Energy
Label
Optional Accessory Wall mount
Certification
Certifications CE EMC, CE LVD, CE ERP
