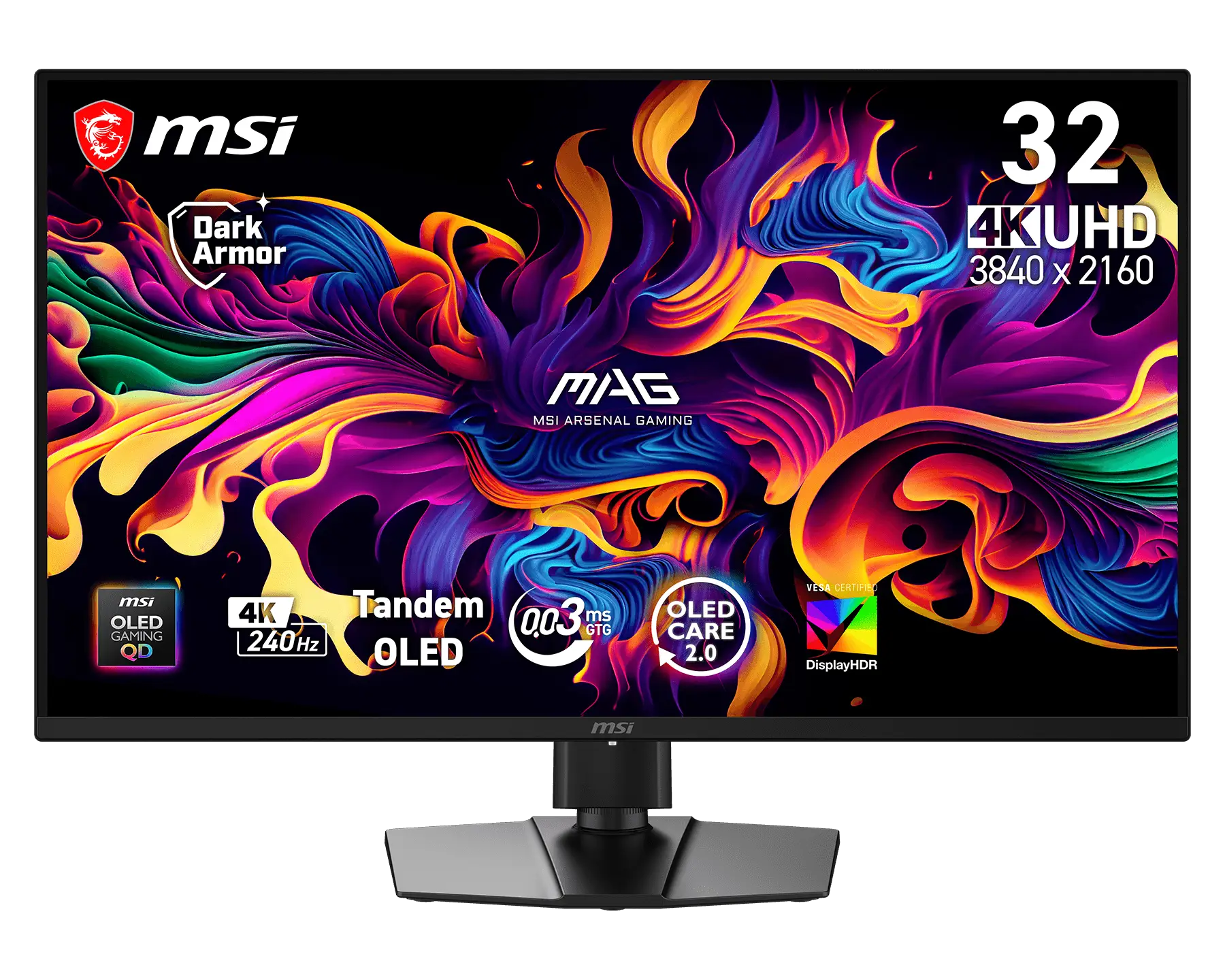

MSI Gaming monitor MAG 321UP QD-OLED X24, 31,5" QD-OLED/3840x2160(UHD)/240Hz/0,03ms/2xHDMI/DP/USB-C/výšk. nast./Pivot

Website Name MAG 321UP QD-OLED X24
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80.01 cm)
Active Display Area (mm) 699.48(H) x 394.73(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1814(H)x0.1814(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology NVIDIA G-SYNC Compatible / AMD FreeSync™ Premium Pro
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) VESA DisplayHDR True Black 500
SDR Brightness (nits) 300
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 560.6~562.6 KHz(H) / 48~240 Hz(V)
Refresh Rate 240HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120%/93%
NTSC (CIE1931 area percentage/overlap) 105%/91%
sRGB (CIE1976 area percentage/overlap) 138%/100%
sRGB (CIE1931 area percentage/overlap) 148%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118%/97%
Adobe RGB (CIE1931 area percentage/overlap) 110%/93%
DCI-P3 (CIE1976 area percentage/overlap) 110%/99%
DCI-P3 (CIE1931 area percentage/overlap) 109%/99%
Rec.709 (CIE1976 area percentage/overlap) 138%/100%
Rec.709 (CIE1931 area percentage/overlap) 148%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80%/80%
Rec.2020 (CIE1931 area percentage/overlap) 78%/78%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 240Hz)
Note_HDMI 3840 x 2160 (Up to 240Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR True Black 500
VESA ClearMR VESA ClearMR 13000
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country USA
Territory AM
Entity USLAX
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 33
Annual Energy Consumption (KWh) 33
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Toolless locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care 2.0
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S161A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1188
Net Weight (by air) kg 150
Gross Weight (by air) kg 170
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2200
Net Weight (by sea) kg 300
Gross Weight (by sea) kg 320
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 719.1 x 241.9 x 483.9
Product Dimension with Stand (WxDxH) (inch) 28.31 x 9.52 x 19.05
Product Dimension without Stand (WxDxH) (mm) 719.1 x 69.3 x 418.3
Product Dimension without Stand (WxDxH) (inch) 28.31 x 2.73 x 16.47
Stand Dimension (WxDxH) (mm) 308.7 x 241.9 x 390.8
Stand Dimension (WxDxH) (inch) 12.15 x 9.52 x 15.39
Weight (Net kg) 7.7
Weight (Net lbs) 16.98
Weight Without Stand (kg) 5.0
Weight Without Stand (lbs) 11.02
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 97.5 x 18.5 x 51.5
Inside Carton Dimension (WxDxH) (inch) 38.39 x 7.28 x 20.28
Outer Carton Dimension (WxDxH) (cm) 99.5 x 19.5 x 54
Outer Carton Dimension (WxDxH) (inch) 39.17 x 7.68 x 21.26
Weight (Gross kg) 12.38
Weight (Gross lbs) 27.29
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Micro USB Type B cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 321U X24
Segment Name MAG
Series Name OLED
Segment Name3 MAG 321UP QD-OLED X24
Extra Info
EOL Date
Barcode Info
UCC14 10824142449568
UPC 824142449561
JAN
EAN 4711377410786
