TP-Link Deco PX10(3-pack)
AX1500 + AV1000 Whole Home Powerline Mesh WiFi 6 System


AX1500 Dual Band WiFi – 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz).†
HomePlug AV2 1000 Mbps – 1 Gbps Powerline Network speeds ***
Network Passes Through Walls and Floors – Reduce the impact of walls and other obstacles on signal.

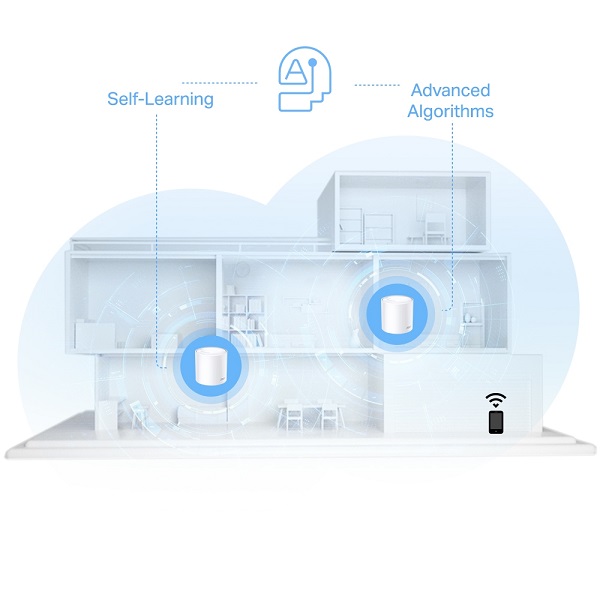

AI-Driven Mesh – Intelligently learns your network environment to provide ideal WiFi unique to your home.*
Gigabit Wired Speed – 3× Gigabit ports provide sufficient connectivity.§
HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.**

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11ax)
Powerline Speeds HomePlug AV2
1000 Mbps Powerline

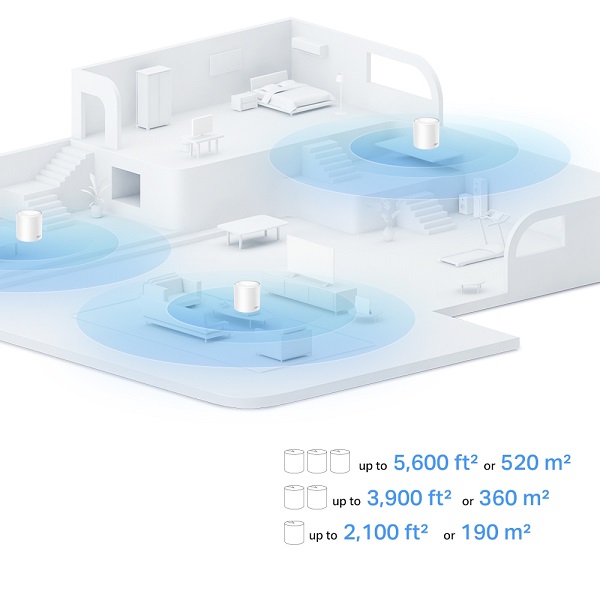

WiFi Range 4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

Powerline Technology
Uses your home's electrical wiring to create stronger connections between Deco units, reducing the impact of walls or other obstacles on signal

2 × dual-band antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity Medium
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients
Working Modes Router Mode
Access Point Mode
SECURITY

Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA/WPA2/WPA3
HARDWARE

Ethernet Ports 3 × Gigabit ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SOFTWARE

Protocols IPv4
IPv6
Service Kit HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
L2TP
PPTP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Features Deco App
OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443   Protocol: TCP
DNS
DNS
• Port: 53   Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67   Protocol: UDP
App management
Manage and configure device through app
• Port: 22   Protocol: TCP
• Port: 20001   Protocol: TCP
• Port: 30001   Protocol: TCP
• Port: 20002   Protocol: UDP
TEST DATA

WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
PHYSICAL

Dimensions (W×D×H) 4.1 × 4.1 × 6.7 in
(105 × 105 × 169 mm)
Package Content Deco PX10 (3-pack)
3× Deco PX10 Units(routers with powerline)
1× RJ45 Ethernet Cable
3× Power Cords
Quick Installation Guide

Deco PX10 (2-pack)
2× Deco PX10 Units(routers with powerline)
1× RJ45 Ethernet Cable
2× Power Cords
Quick Installation Guide
OTHERS

Certifications CE, FCC
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
